Automatically adding Kubernetes Service DNS records to Microsoft DNS using CoreDNS and k8s_gateway

Table of Contents

Warning: This article is now 5 years old! It is highly likely that this information is out of date and the author will have completely forgotten about it. Please take care when following any guidance to ensure you have up-to-date recommendations.

When I deploy a new service into a namespace, I need to create a new DNS record that makes it available. I’ve previously talked about using CoreDNS to host my lab DNS zones, but this is something different. I want to make a Kubernetes Service available using an existing Microsoft DNS server - which is already used by all the clients who would need to access the service.

To do this I will create a delegated zone under my existing zone cmbu.local that CoreDNS will be responsible for. Then I will use the k8s_gateway plugin to automatically create records for Services provisioned within my zone.

Deploying k8s_gateway
#

The k8s_gateway plugin for CoreDNS automatically creates a DNS record based on the name of the service and it’s namespace, into a zone that you specify. If I create a CoreDNS zone called myzone.com and then deploy a LoadBalancer called my-lb in a namespace called my-namespace will create a corresponding DNS record of my-lb.my-namespace.myzone.com.

There’s a handy helm chart to deploy a separate instance of CoreDNS with the plugin configured. By passing the domain value I can configure a zone in which the records for my Services will automatically be created.

With my Kuberentes context pointed at my namespace, I clone the k8s_gateway repository, and deploy the helm chart:

git clone https://github.com/ori-edge/k8s_gateway.git
helm install opencart-dns --set domain=moad.cmbu.local ./k8s_gateway/charts/k8s-gateway

This deploys a new instance of CoreDNS and exposes it with a service, to get the IP address of the new service I use kubectl get services

❯ kubectl get services
NAME                       TYPE           CLUSTER-IP       EXTERNAL-IP     PORT(S)        AGE
opencart-dns-k8s-gateway   LoadBalancer   10.106.101.233   10.176.193.34   53:30482/UDP   9m

Delegating a DNS Zone
#

Next I create the delgated zone within my Microsoft DNS zone:

The subdomain will be part of the generated DNS name - in my case service-name.namespace.moad.cmbu.local

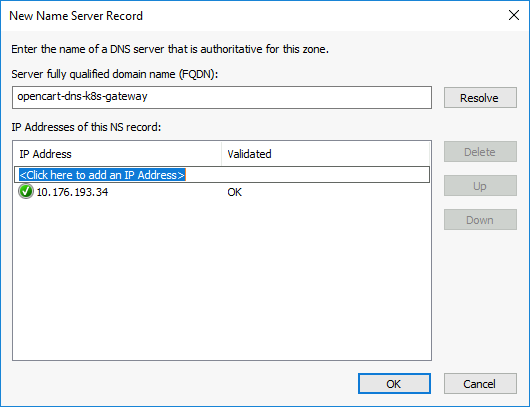

You can either create an A record for your CoreDNS instance, then add and resolved the FQDN, or manually add a Server FQDN (in my case I just used the generated one) and then add the Service’s IP address from the kubectl output above.

Add the CoreDNS server as authoritative for the zone

Testing with a new Service
#

To validate this is working and to test my new dynamically generated DNS record, I’ve deployed a new service called oc-smcgeown - you can see it in the output of the command below:

❯ kubectl get services
NAME                       TYPE           CLUSTER-IP       EXTERNAL-IP     PORT(S)                      AGE
oc-smcgeown                LoadBalancer   10.106.254.108   10.176.193.30   80:30207/TCP,443:32171/TCP   4m2s
opencart-dns-k8s-gateway   LoadBalancer   10.110.157.249   10.176.193.34   53:30879/UDP                 36m

All being well, my DNS record service-name.namespace-name.moad.cmbu.local should be responding:

❯ ping oc-smcgeown.opencart.moad.cmbu.local
PING oc-smcgeown.opencart.moad.cmbu.local (10.176.193.30): 56 data bytes
64 bytes from 10.176.193.30: icmp_seq=0 ttl=50 time=168.755 ms
64 bytes from 10.176.193.30: icmp_seq=1 ttl=50 time=168.649 ms
64 bytes from 10.176.193.30: icmp_seq=2 ttl=50 time=168.702 ms
^C
--- oc-smcgeown.opencart.moad.cmbu.local ping statistics ---
3 packets transmitted, 3 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 168.649/168.702/168.755/0.043 ms
